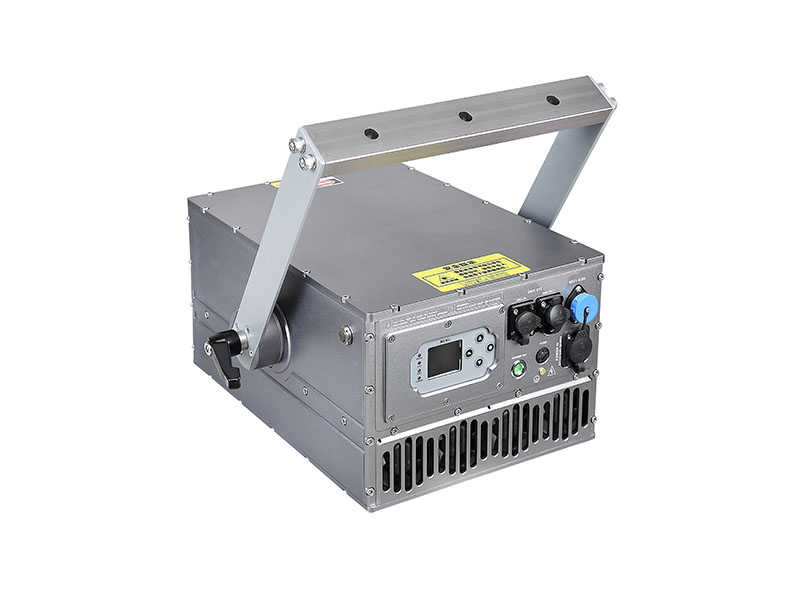

D7-RGB Outdoor animation laser

The lamp adopts the intelligent temperature control system independently developed by our company to ensure the normal use under the environment of -20~40°C.Lightfulwaterproof laser is widely used in urban lighting, landscape lighting, and cultural tourism. Our company has a technical team with rich on-site experience, strong guarantee, and quick response before and after sales.

Product model：

◎Rated Voltage: AC100~240V 50/60Hz; ≤300W

◎Scanner:  40K fast scanning system, scan angle:max±30°;Input signal:±5V;Linearity distortion<2%

◎Modulation:analog

◎Beam diameter and divergence: 6*6.5mm;1.5mrad

◎Control mode: auto, master-slave, DMX512(27/52CH),  ILDA

◎Control Interface:waterproof 3 pin Dmx512,waterproof DB25 ILDA

◎Demonstration effect: built-in 160 pattern

◎DMX effect: double pattern mode,and with the function of unique blanking,strobe, rotation, movement, zoom, write in,speed and color etc.

◎Control technology: ①RDM data bidirectional transmission ② temperature control system  ③DMX512 upgrade

◎IP rate:IP 65(outdoor)

◎Size:62*42*42cm(flight)                N.W/G.W:18.5/32Kg

◎Size:53*42.5*28.5cm(carton)         N.W/G.W:18.5/22Kg
